Segmented Reflector Design Software

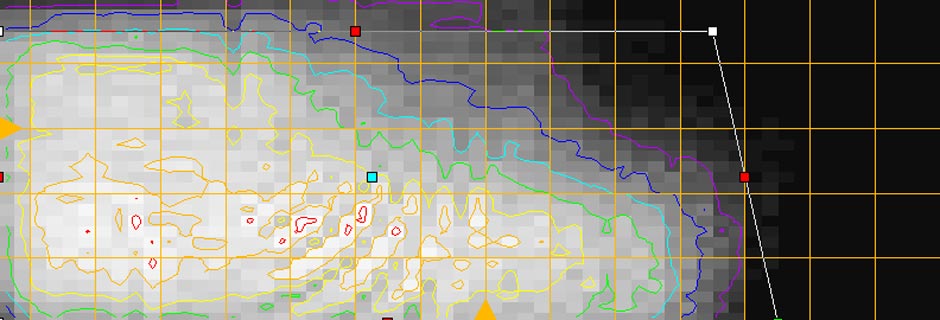

ReflectorCAD® from Breault Research Organization (BRO) is a paradigm-shifting reflector design tool allowing users to make graphical adjustments to the luminous intensity patterns corresponding to individual reflector segments. The program does the rest.

A graphical change to the luminous intensity pattern of a reflector segment results in automatic changes to the prescription of that segment. This easy, click-and-drag construction and analysis of segmented reflectors, greatly reduces the time required to go from creative concept, to proven design, to prototype.

ReflectorCAD can be used anywhere segmented reflectors are required. The program works well as a stand-alone application, or in concert with ASAP® and the ELTM Add-On. ASAP is BRO’s non-sequential ray tracing program, which includes powerful capabilities for modeling physical optics, imaging, and illumination systems.
