3D Analysis Software for Scientific and Industrial Data

Avizo 3D Software for Materials Science

Visualize | Analyze | Understand

Avizo is an advanced 3D analysis software application for exploring and understanding materials structures and properties, in a wide range of materials science research areas and for many types of materials (porous media, metals and alloys, fibrous materials, composites,

From straightforward visualization and measurement to advanced image processing, quantification, analysis and reporting, Avizo provides a comprehensive, multimodality digital lab for advanced 2D and 3D materials characterization.

3D-image data import & processing

Import imaging data from any kind of modality (X-Ray tomography, electron and optical microscopy, at any scale, any size.

Apply advanced filters and operators for image correction and enhancement, calibration, alignment, etc… and get an artifact-free 3D-image stack perfectly suitable for exploration and analysis.

3D data exploration

Perform immediate interactive visual inspection thanks to Avizo’s high-quality volume rendering.

Use advanced probing tools such as dynamic slicing, contouring, color-mapping, iso-surfacing, etc, to perform insightful visual analytics of your materials structure.

Image segmentation and feature extraction

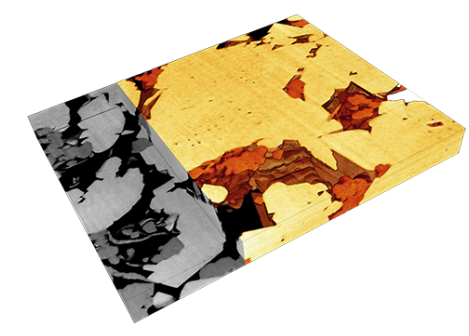

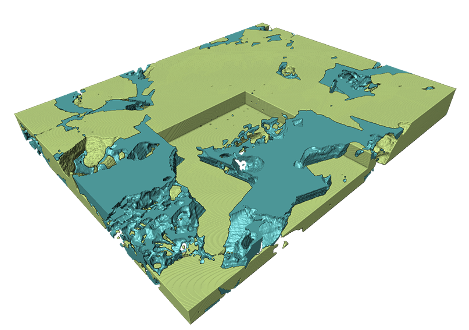

Get more detailed insight of your materials structure by using powerful segmentation tools. Accurately identify the different components of your materials, and extract features such as the different materials phases, pores, fibers.

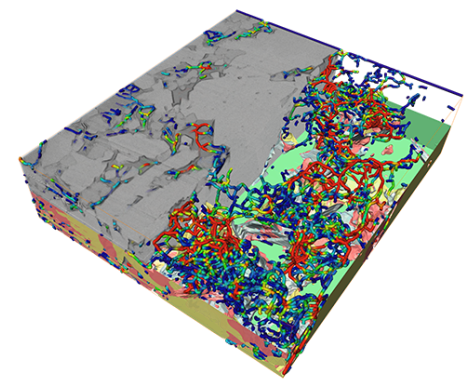

Use advanced‘skeletonization’ tools to reconstruct networks within your materials structure.

Quantification and analysis

Generate 3D models of your materials structure using Avizo’s 3D surface and geometry reconstruction modules.

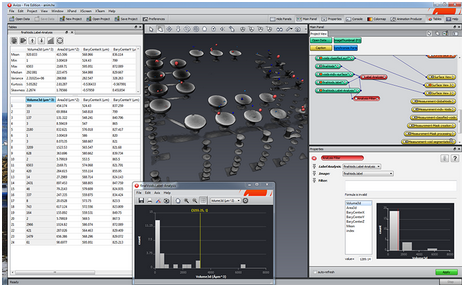

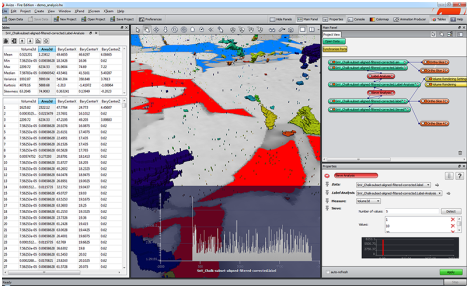

Use then some of the 70 built-in measurements and statistics tools to get advanced quantitative information on your material, such as counts, distribution, volumes, orientations, etc. Export reconstructed 3D meshes to CFD/FEA packages for advanced material properties simulation.

Automation, reporting, presentation

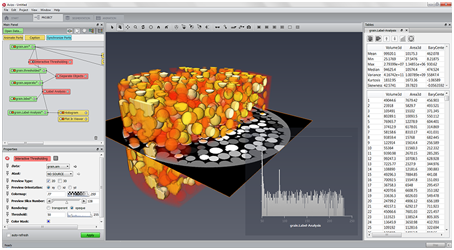

Automate: All Avizo’s operations are structured in an incremental data processing graph. They can be scripted and advanced semi-automated workflows can be recorded.

Report: Analysis and quantification results can be output as graphs and spreadsheets and displayed on the screen or exported in a report file.

Communicate: Create high-resolution images and high-quality movies to present and share your research work. Avizo also support stereoscopic and immersive VR displays

PerGeos for Digital Rock Analysis

3D visualization, analysis and simulation software

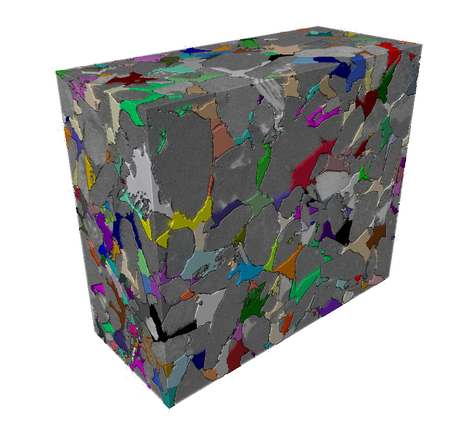

Digital Rock encompasses a multi-disciplinary approach involving advanced microscopy and physics combined with geology, geochemistry, petrophysics, and petroleum engineering to understand the pore-scale microstructure of reservoir rock. It is used to help E&P operators reduce exploration and production risk while informing decision-making to improve recovery.

Using PerGeos Software and its data extraction capabilities, R&D Scientists and Technology and Asset teams can analyze, simulate and visualize 2D and 3D digital rock imagery to improve evaluation of reservoir quality and more quickly understand static and dynamic rock properties that impact production.

Thanks to its unparalleled capabilities such as Multiscale Imaging, Dual Energy Computed Tomography (DECT), Two-Phase Flow Simulation and many more, PerGeos Software is a unique solution that allows you to solve complex challenges from a single environment.

PerGeos delivers:

  • Collaborative Core Analysis – Multi-disciplinary sharing of information to build a common rock model
  • Consistency in Data Processing & Modeling – Automated workflows to streamline efficiency and implement best practices
  • Confidence in Results – Multi-scale, multi-modal image analysis to help users validate observations and properties from a variety of datasets
  • Customized for Oil & Gas – The most advanced set of artifact removal and analytical tools on the market designed specifically for oil & gas reservoir characterization & digital rock analysis

Featured Video

Webcast: PerGeos Software for Digital Rock

Unearth consistent and actionable digital rock and core analysis data

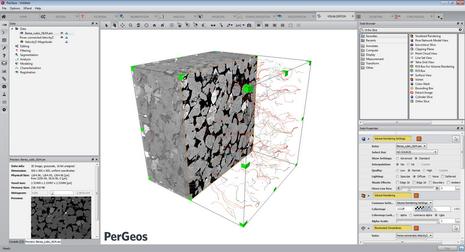

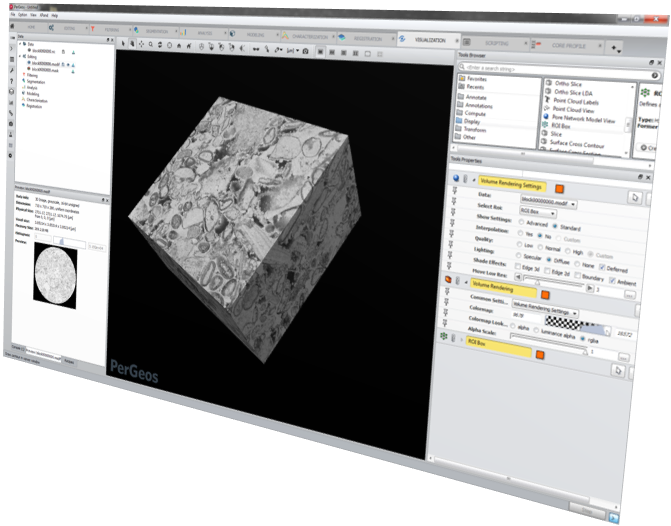

PerGeos is the industry’s first digital rock software designed to help geoscientists rapidly interpret digital rock imagery so that E&P engineers can quickly and easily obtain meaningful, actionable data. Its visualization, processing, and analysis of 2D and 3D digital rock imagery enables improved evaluation of reservoir quality and faster understanding of static and dynamic rock properties that impact production. PerGeos can be used as a standalone software platform or bundled with a variety of applications to customize the user experience with additional functionality for digital core analysis.

PerGeos delivers the 4 Cs: Confidence in results, Consistency in data processing and modeling, a common platform for Collaboration , and Customization tailored specifically to the oil and gas industry.

Collaboration – Building a Common Rock Model

Oil companies currently analyze a wide array of image data types and formats when trying to understand the physical characteristics of reservoir rock. By learning how those characteristics relate to the potential value of a reservoir, geoscientists can then relate those observations to the production techniques required to optimize that value. Information extracted from these disparate sources can now be managed digitally with PerGeos via a collaborative workspace.

PerGeos offers a flexible, multi-disciplinary, modular architecture that supports the exchange of information and rock statistics between geologists, petrophysicists, and core analysts. Such collaboration facilitates the creation and sharing of a common rock model much faster than with traditional core analysis methods.

In addition to the standard, built-in, automated image processing workflows, PerGeos offers a suite of applications that provide a customizable user experience. Users can select from the following add-ons:

  • Core Profile: A powerful, whole-core data application that enables co-visualization of whole-core CT, core photography, and petrophysical logs in a single workspace. Core Profile also creates virtual logs based on whole-core CT data for further calibration and communication of how changes in rocktype impact how petrophysical properties are measured down-hole.

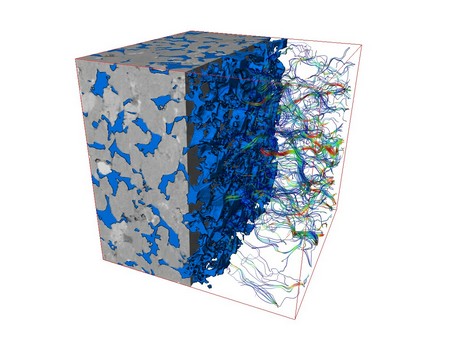

  • Petrophysics: A suite of models for rock property analysis and simulations to derive measurements such as absolute permeability, Archie m (from formation factor F), thermal properties, and MICP saturation curve simulation.
  • Pore Statistics: An application that contains a straightforward operation to extract a pore network model from a segmented 3D dataset (FIB-SEM or microCT). The application includes automated workflows to quantify 2-phase and 3-phase fluid storage.

Consistency – Implementing Data Processing & Modeling Best Practices

PerGeos helps geoscientists rapidly interpret digital rock imagery to better understand formation features and measure physical properties on reservoir rock. A simplified user interface is combined with automated workflows, allowing users to quickly create and curate best practices to ensure high-quality data regardless of the image modality (CT, SEM, optical microscopy, etc.) and independent of the user’s intimacy with the software.

Confidence – Generating Reliable Data, Faster

Multi-scale, microscopic imagery and advanced digital rock modeling provide the only direct measurement for analyzing critical structural characteristics and physical properties, such as grain size, pore space and connectivity, clay distribution, and porosities associated with mineralogy or organic matter. The integrated philosophy of PerGeos enables users to investigate and combine multi-modal datasets to qualitatively and quantitatively validate results, giving greater confidence in the reliability of the observations and derived properties. PerGeos features tools to side-by-side compare and/or fuse datasets; for example, optical thin sections and mineralogy can be overlaid with ease. It also provides new functionality for core analysts who want to understand observations from core- to pore-scale.

The speed and accuracy with which PerGeos delivers digital rock results is important for reservoir engineers awaiting these critical inputs for their geomodels. Knowledge of these properties helps asset managers visualize and understand the ultimate potential recovery of a reservoir, thereby improving their estimates of reserves and overall production-related CapEx investments.

Confidence – Generating Reliable Data, Faster

PerGeos provides the flexibility to customize workflows via an intuitive user interface designed specifically for oil and gas reservoir characterization and digital rock analysis. PerGeos incorporates new artifact removal and analytical tools, including microCT beam-hardening filters and MICP simulation workflows that provide any user the valuable tools needed to answer the most challenging image and analytical questions. Even for non-experts, customized workflows are possible through FEI’s in-house experts, who can create custom scripts to fit any requirement.

Featured Document

PerGeos Brochure

PerGeos is a robust software platform for visualizing, processing, and analyzing 2D and 3D digital rock imagery that enables improved analysis of reservoir quality and faster understanding of static and dynamic rock properties that impact production. PerGeos can be used as a standalone software platform or bundled with a variety of applications to customize the user experience with additional functionality for digital core analysis.Download document…

Avizo 3D Software for Electronics

Visualize | Analyze | Understand

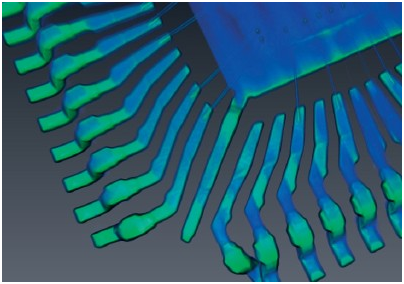

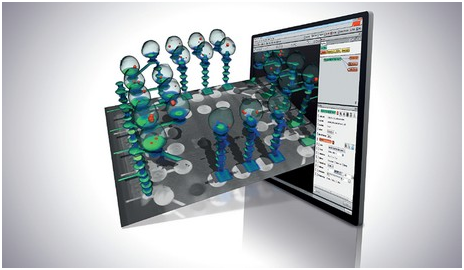

Avizo software provides powerful tools for visualizing and analyzing semiconductor materials data from tomography, microscopy, MRI, and more techniques. From defect/flaw detection and analysis, to performance and process evaluation, and materials characterization,

Avizo is used in many ways throughout all the research, design and development phases of semiconductor devices.

All-in-one digital inspection tool

Avizo provides a comprehensive software platform for semiconductors and electronics digital analysis:

  • Multi-modal data processing (X-ray tomography, microscopy, ultrasonics,…)
  • 3D data exploration and visual inspection
  • Advanced image segmentation tools for feature extraction
  • Quantification, analysis and measurement
  • Porosity characterization
  • 3D image-based meshing for CFD and FEA simulation
  • High-performance processing and visualization for very large data sets

Advanced 3D-image data processing and analysis

Avizo includes 2D and 3D image filtering modules, advanced slice alignment capability, automated or assisted segmentation with 3D surface reconstruction, allowing for phase separation, feature extraction, and advanced geometrical and statistical measurements, to get advanced qualitative and quantitative information for :

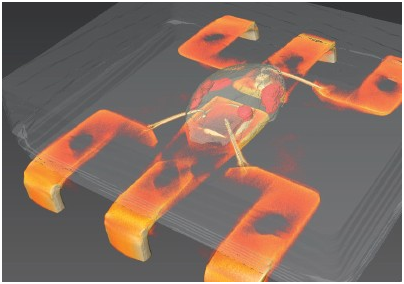

  • Void analysis
  • Short / Open circuits
  • Die cracks
  • Packaging defects
  • Solder related defects
  • Failure detection

Voids in FIB/SEM nanowires
Data: Nanyang University

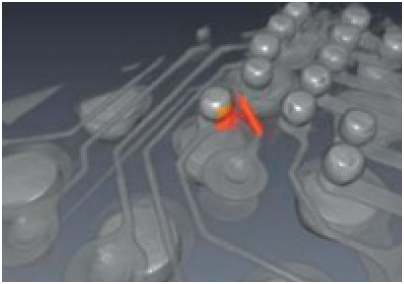

Slice view of short circuit
Data: NanoX Technology Pte Ltd

Mosi2 characterization
Data: University NSW

Concentricity check in capillary device
Data: NanoX Technology Pte Ltd

Microprocessor
Data: NNFC Korea

Voids in silicon
Data: NanoX Technology Pte Ltd

Short circuit
Data: NanoX Technology Pte Ltd

Documents and Links

Avizo provides powerful tools for visualizing and analyzing multi-modal 3D data. It is used in many ways throughout all the research, design and development phases of a material/product, and its 2D/3D image review software tools and workflow offer high-performance capabilities to NDT specialists.
Download document

Avizo Inspect

3D software for digital industrial inspection

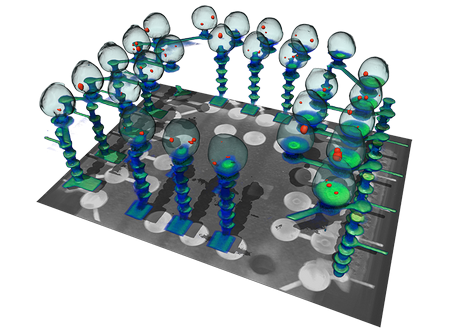

Computed Tomography is increasingly used in industry as a method for nondestructive testing, adding to standard CMM the ability to make digital measures and detect and quantify defects inside a part. Based on FEI’s flagship Avizo software application and integrating expertise acquired over more than 10 years, Avizo Inspect 3D software allows to visualize, analyze, measure and inspect industrial objects acquired by CT systems or 3D microscopy.

Avizo Inspect provides a comprehensive set of tools addressing the whole research-to-production cycle: from materials research in off-line labs to automated quality control in production environments. With Avizo Inspect, reduce your design cycle, inspection times, and meet higher-level quality standards at a lower cost.

Avizo Inspect

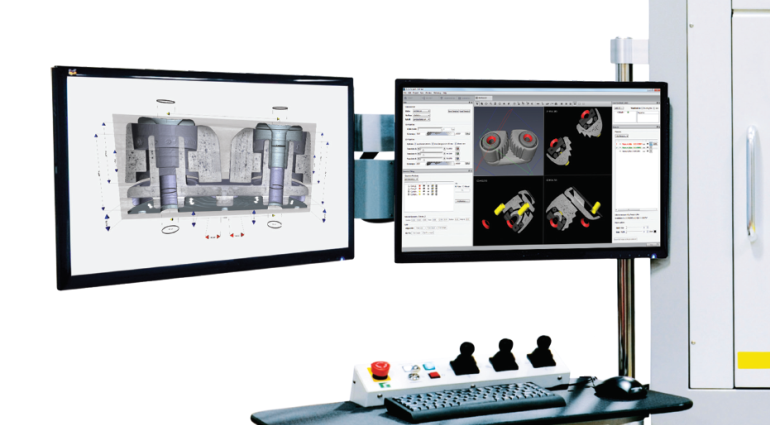

Avizo Inspect streamlines the process of industrial inspection and materials design-off-line, near-line, and in-line.

  • Dimensional metrology with advanced measurement
  • Extensive set of inspection workflows (recipes) for detection and quantification (indications, porosity, inclusions, defects, fiber characterization)
  • Easy creation and customization of inspection recipes
  • Reporting and traceability
  • Actual/nominal comparison by integrating CAD models
  • Reverse engineering workflow for additive manufacturing
  • Automation and full in-line integration

Dimensional metrology

Great advances in the resolution of computed tomography acquisition systems together with state-of-the-art analysis software have now reached a level of precision to be suitable for dimensional metrology in industrial inspection.

Avizo Inspect 3D software for digital industrial inspection provides advanced dimensional metrology tools for defining a test plan on a reference part. Such test plans can be replayed automatically on any part corresponding to the reference. Automatic Accept or Reject decisions can be made by evaluating the results of the test plan processing. A set of nominal values including tolerancing information can be defined on a reference part in order to inspect all parts and check for compliance.

Easy creation & customization of inspection workflows

While digital industrial inspection aims at improving production quality, the inspection process should also be able to provide cost reductions and support increased productivity. The ultimate goal is to fully automate complex inspection scenarios.

The new Avizo Inspect 3D software for digital industrial inspection provides an advanced recipe mechanism that allows defect detection and part characterization to be automated. For a particular inspection workflow, the recipe is created just once and can then be replayed at any time.

The recipe includes advanced analysis processes that give meaningful insight about defects that are detected during the inspection. The automatically generated quantifiable measurements allow a proper assessment of the part quality.

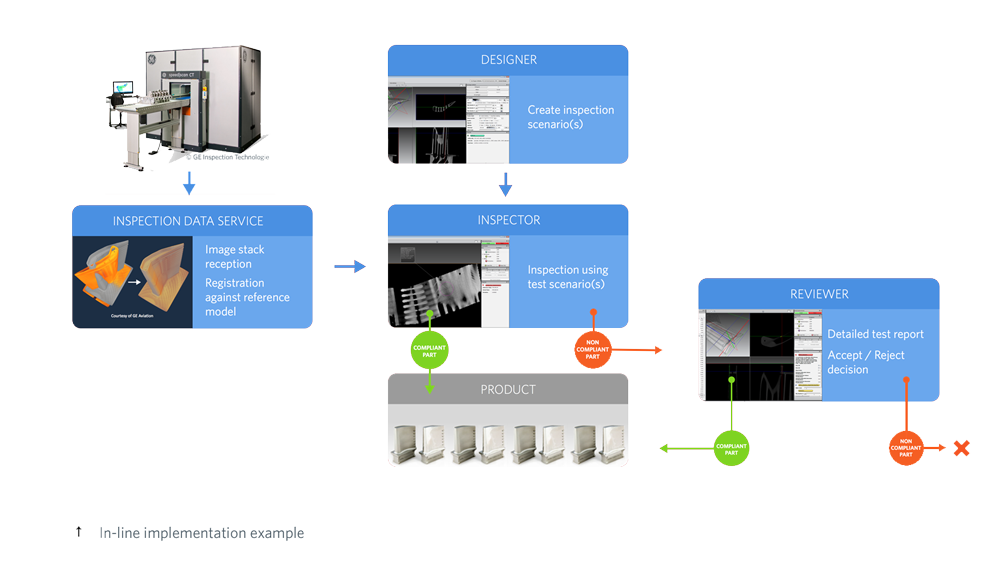

Automation and full in-line integration

Complex inspection scenarios, combining multiple recipes on different sub-regions of the part or material, can be created using Avizo Inspect Designer. Scenarios can combine multiple steps of visual inspection and automatic or manual measurements. Inspector services run scenarios created with Avizo Inspect Designer and will accept or reject a part according to automated or interactive acceptance and/or tolerance values associated with automatic and/or manual measurements.

Avizo Inspect In-line directly connects Inspector services with the acquisition system, streamlining the inspection process. Avizo Inspect Service, included with In-line, pre-processes data pushed to a DICOM/DICONDE server; performs pre-processing, such as multi-part splitting, part registration to reference model, and acquisition artifact reduction; then dispatches the pre-processed part to a scalable collection of Inspector services. At any time, the results of inspection scenarios can be accessed with Reviewer services, where each step of the scenario can be reviewed and a final decision on part acceptance made. Avizo In-line also includes user administration, allowing assignment and management of different permission levels.

Availability

Avizo Inspect software is now available! Avizo Inspect is built on top of and is a natural evolution of the leading FEI Avizo software product. Existing users of Avizo will benefit from special upgrade paths.

Avizo Inspect brochure

Discover how Avizo Inspect can allow you to reduce your design cycle, inspection times, and meet higher-level quality standards at a lower cost. Download Document

Avizo for Food Analysis

3D visualization and analysis software

3D imaging techniques, such as X-ray micro-computed tomography (micro-CT), scanning electron microscopy (SEM), and magnetic resonance imaging (MRI), provide insights into food structure and how it changes in various situations, including processing operations.

Our flagship Avizo 3D software is an all-in-one image analysis platform that allows the visualization, processing, and quantification of food structure acquired with a variety of imaging modalities.

The microstructural characterization and the relation of microstructure to properties needed in food engineering, chemistry, microbiology, and safety are easily made possible by Avizo’s comprehensive food analysis toolset.

Application Examples:

Food engineering

Food engineering helps advance product quality, improving food properties for more cost-effective production and commercialization. Avizo helps food engineers understand the relation between microstructure and product properties with 3D visualization, processing, and analysis of MRI and micro-CT images of food. Time-series analysis of the evolution of food is also possible with Avizo, further contributing to improvements in the longevity and other aspects of food.

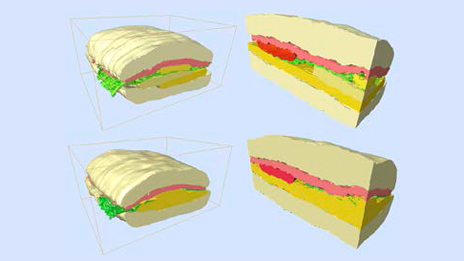

UNILEVER uses Avizo to visualize and clarify food structures. Learn more…

Product quality and safety

Providing safe, high-quality food is a mandatory requirement that protects consumers from illness and injury. The combination of micro-CT images and Avizo allows for analysis and control of biological, chemical, and physical elements of the finished food product.

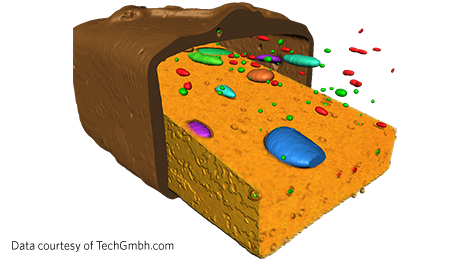

For example, during the analysis of a random chocolate candy, the end of the production chain is tasked with checking both the food quality (in terms of quantity of ingredients) and the food safety (presence of undesired materials). The composition of the candy (volume amount of each ingredient) is precisely measured, as well as the porosity.

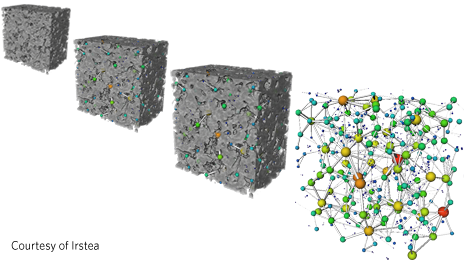

Bubbles analysis

Bubbles in food create an aerated structure that enhances the product appearance and its properties (smoothness, creaminess, crispness, etc.). Avizo provides efficient methods of segmenting the bubbles and quantifying both their attributes and size distribution. Avizo’s Pore Network Modeling allows the creation of an equivalent network model of the porous distribution for advanced analysis of the bubbles’ interconnections and properties.

Powder flowability

Physical properties, such as particle size and spatial distribution, shape factors, packing density, and surface area, play a key role in powders flow. Powder flowability can be fully characterized with Avizo’s advanced and extensive quantification and analysis toolset.

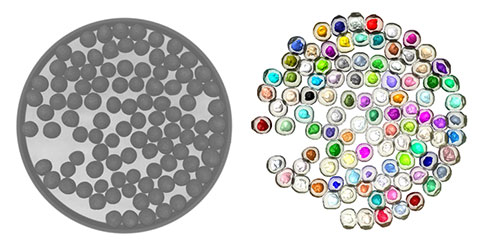

For example, agglomerates in baby powder milk can be segmented and classified based on size and spatial distribution, to quantify their effect on powder flowability.

Seed analysis

3D structural analysis of seeds is critical in many aspects of seed technology. Avizo’s advanced characterization toolset allows for quality control of coated seeds. Seed coat thickness, volume, sphericity, and roughness can be evaluated. Measurements of internal and external seed structures, including volume and surface areas, allow for the quantification of seed properties such as resistance and germination potential. Nondestructive testing visualization and analysis of seeds is also made possible based on Avizo’s high-quality 3D volume rendering techniques.

GEVES uses Avizo to study and control plant seeds. Learn more

The solution of choice for food analysis

In addition to its complete toolset for food image segmentation and analysis, Avizo also allows for microstructural bubble and agglomerate analysis with its Pore Network Modeling capabilities coupled with advanced fiber statistical analyses. Food structure can also be modeled and exported as volumetric meshes for further simulations in FEA/CFD software tools.

User references

Avizo is a popular 3D data analysis software application, used daily by thousands of researchers and engineers worldwide.
