Automated Testing and Validation

Enabling the Reactis for EML Plugin

Enable the plugin by selecting File -> Global Settings…, selecting the Reactis for EML tab, and then in the resulting dialog (Figure 17.1) select Enable white-box analysis of Embedded MATLAB code (requires license for EML Plugin).

The other controls in this tab let you toggle the display of line numbers in the main panel, set the background color of the line number bar, and toggle and set the color for drawing a grid (alternating the background color of each line) in the main panel.

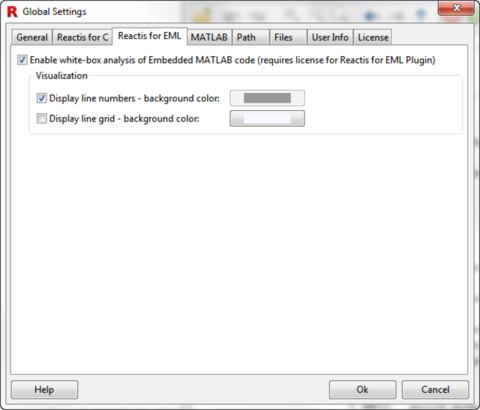

Figure 17.1: The Settings dialog with tab Reactis for EML selected.

As shown in Figure 17.2, after enabling the EML Plugin, the EML code contained in a model element will be displayed in the Reactis main panel when the element is selected in the hierarchy panel. Since Simulink stores the EML code within the model’s .slx file, no special configuration is required within Reactis. Reactis automatically extracts the EML code from the .slx file.

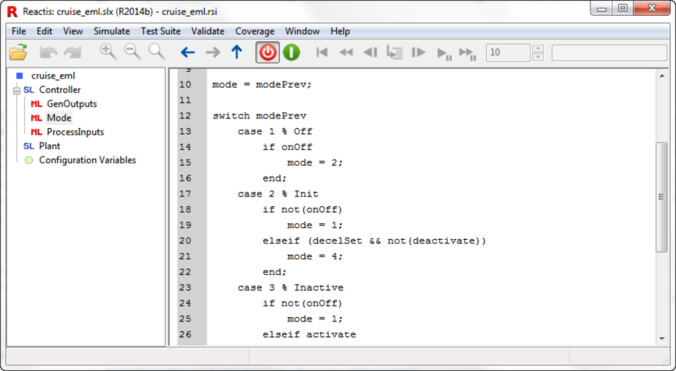

Figure 17.2: In the hierarchy panel, the names of MATLAB Function blocks are prefixed with the red ML symbol and when such a node in the hierarchy is selected the block’s EML code is displayed in the main panel.
