Figure 6 shows how engineers use Validator. First, a model is instrumented with assertions to be checked and user-defined coverage targets. In the following discussion we shall refer to such assertions and coverage targets as Validator objectives. The tool is then invoked on the instrumented model to search for assertion violations and paths leading to the specified coverage targets. The output of a Validator run is a test suite that includes tests leading to objectives found during the analysis. Validator objectives may be added to any Simulink system or Stateflow diagram in a model.
Two mechanisms for formulating objectives in Simulink models are supported: Expression objectives are C-like boolean expressions. Diagram objectives are Simulink / Stateflow observer diagrams.
Diagram objectives are attached to a model using the Reactis GUI to specify a Simulink system from a library and “wire” it into the model. The diagrams are created using Simulink and Stateflow in the same way standard models are built. After adding a diagram objective to a model, the diagram will be included in the model’s hierarchy tree, just as library links are in a model. Note that the diagram objectives are stored in a separate library and the .mdl/.slx file containing the controller model remains unchanged.

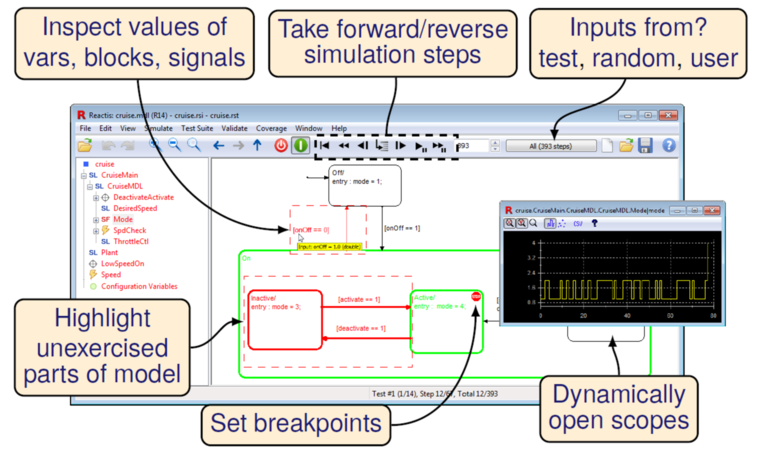

Because of its sophisticated model-debugging capabilities, the Reactis tool suite provides significant added value to the MathWorks Simulink/Stateflow modeling environment. The great virtue of model-level debugging is that it enables engineers to debug a software design before any source code is generated. The earlier logic errors are detected, the less costly they are to fix.
